What is a Deep Draw Hydraulic Press?

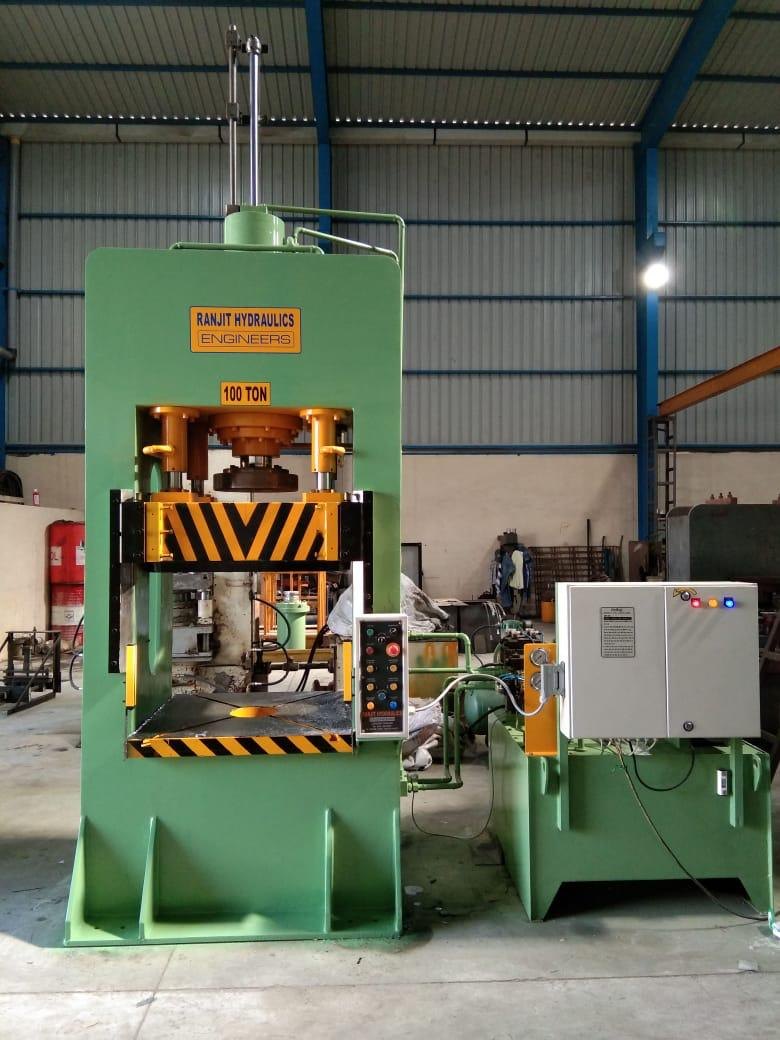

A deep draw hydraulic press is a type of metalworking machinery used to shape metal parts and components into a specific size and shape. It is a powerful tool capable of creating complex pieces of metalwork quickly and accurately. The press typically consists of a frame and a hydraulic cylinder, with a die set installed. The die set is made up of two pieces – the blank holder and the punch. The blank holder is placed in the frame, and the punch is connected to the hydraulic cylinder. When the hydraulic cylinder is activated, the punch moves downward, creating a pressurized force that shapes the metal blank into the desired shape.
The metal blank is placed in a deep draw die set, and the hydraulic press is placed over it. The blank is held in place by the blank holder, and the punch is moved downward by the hydraulic cylinder. The hydraulic cylinder applies a force to the metal blank that is equal to the pressure of the die set, and the metal blank is “drawn” into the desired shape. This process is repeated as many times as necessary to form the desired shape.
Deep draw hydraulic presses can be used to create a wide variety of metal parts, from small components to large, complex pieces. They are capable of forming metal blanks into shapes that are impossible to achieve with traditional metalworking methods. Additionally, they are fast and efficient, capable of producing large quantities of high-quality parts in a short amount of time. This makes them ideal for production lines and other industrial applications.
Advantages of Deep Draw Hydraulic Presses
Deep draw hydraulic presses offer a number of advantages over traditional metalworking methods. They allow for the creation of complex parts with a high level of accuracy, and they are capable of producing these parts quickly and efficiently. Additionally, they require minimal setup time and can be used to form large batches of parts in a single production run.
Unlike other metalworking methods, deep draw hydraulic presses can be used to form very thin materials without distorting or damaging the metal. This makes them ideal for creating parts such as cans, drum shells, and other thin-walled components. Additionally, they can be used to form parts with intricate details and tight tolerances. This makes them a great choice for applications where precision is paramount.
Another advantage of deep draw hydraulic presses is their ability to form large batches of parts in a single production run. This makes them a cost-effective choice for high-volume production lines. Additionally, they require minimal setup time, which helps to reduce labor costs and increase productivity.
Disadvantages of Deep Draw Hydraulic Presses
While deep draw hydraulic presses offer a number of advantages over traditional metalworking methods, they also have some disadvantages. One of the main drawbacks is that they require a large amount of power to operate. This means that they can be quite expensive to purchase and maintain. Additionally, they require a significant amount of space to operate, which may not be feasible in some settings.
Another disadvantage of deep draw hydraulic presses is that they are not as versatile as other metalworking methods. They are designed to form parts with a specific size and shape, and they cannot easily be adapted to create different shapes. Additionally, they are limited to forming metal blanks of a certain thickness. This means that they are not suitable for forming thicker materials, such as bars or plates.
Finally, deep draw hydraulic presses can be dangerous to operate if they are not used properly. The hydraulic pressure and the moving parts of the press can cause serious injury if they are not handled with care. Therefore, it is important to use proper safety procedures when operating a deep draw hydraulic press.
Conclusion
Deep draw hydraulic presses offer a number of advantages over traditional metalworking methods. They are capable of creating complex parts with a high level of accuracy, and they can produce large batches of parts quickly and efficiently. Additionally, they require minimal setup time, and they can form thin materials without distorting or damaging them.
However, deep draw hydraulic presses also have some disadvantages. They are expensive to purchase and maintain, and they require a significant amount of power to operate. Additionally, they are not as versatile as other metalworking methods, and they are limited to forming metal blanks of a certain thickness. Finally, they can be dangerous to operate if they are not used properly.
