What is Engineering Drawing of a Bolt?
Engineering drawings are detailed, precise illustrations or plans used by engineers and architects to visualize an object or structure. An engineering drawing of a bolt is a technical drawing that provides the precise specifications of a particular type of fastener. It shows the size, shape, and threading of the bolt, as well as the materials used to make it. The engineering drawing also includes any other details needed to manufacture or assemble the bolt properly. It is an essential document that must be followed exactly in order to ensure the safety and quality of the product.
Types of Bolts
There are many types of bolts available, and each type has a specific application. Some of the most commonly used bolts are hex bolts, machine screws, carriage bolts, and lag bolts. Hex bolts are the most commonly used and have hexagonal heads that allow for easy insertion into a tapped hole. Machine screws have a cylindrical head and a threaded shaft, and are used to secure two or more objects together. Carriage bolts have a round head and a square neck, and are used to secure wood or metal together. Lag bolts are large and long, and they are used to secure heavy objects into wood or masonry.
What is Included in an Engineering Drawing of a Bolt?
An engineering drawing of a bolt includes detailed specifications about the size, shape, and threading of the bolt, as well as the materials used to make it. It also includes any additional information needed to manufacture or assemble the bolt. The drawing includes the diameter and length of the bolt, the thread pitch, the thread length, and the type of material used. It also includes the head shape, the head height, and the clearance diameter. The engineering drawing can also include additional information such as the type of coating or finish, the type of thread, and the type of nut or washer used.
Why is an Engineering Drawing of a Bolt Important?
An engineering drawing of a bolt is an essential document that must be followed exactly in order to ensure the safety and quality of the product. It ensures that the correct materials are used and that the bolt is assembled properly. It also ensures that the bolt is strong enough to withstand the forces it will be exposed to during use. By following the engineering drawing, manufacturers can guarantee that the bolts they produce are safe and reliable.

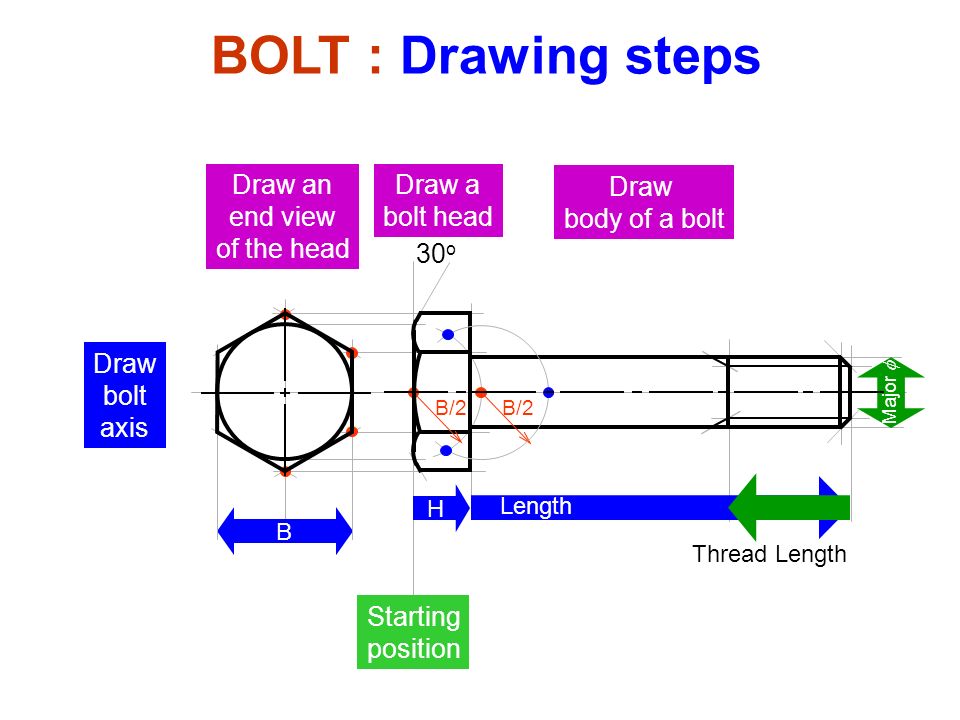

How to Read an Engineering Drawing of a Bolt?
Reading an engineering drawing of a bolt requires a basic understanding of the various symbols and abbreviations used on the drawing. The most important symbols are the ones that indicate the size and shape of the bolt, as well as the materials used. Once these symbols are identified, the drawing can be read and understood. The drawing should also include the thread length, thread pitch, and the type of nut and washer used for assembly.
Conclusion
An engineering drawing of a bolt is an essential document that provides the precise specifications of a particular type of fastener. It shows the size, shape, and threading of the bolt, as well as the materials used to make it. The engineering drawing also includes any other details needed to manufacture or assemble the bolt properly. By following the engineering drawing, manufacturers can guarantee that the bolts they produce are safe and reliable. Understanding how to read the engineering drawing is essential to ensure that the bolt is assembled correctly and that it will be strong enough to withstand the forces it will be exposed to during use.
