What is a French Drain?
A French drain is a form of subsurface drainage system that is used to remove excess water from an area. It is a trench filled with gravel and a perforated pipe that helps collect and transport surface water to an approved drainage location. The French drain is a simple, yet versatile system that can be used to drain wet spots in yards, redirect surface water away from buildings, and even reduce the high water table in some areas.
The French drain was originally developed by Henry French in the mid-19th century. His design used a trench filled with gravel and a perforated pipe to collect and transport water away from the site. The design has since been refined and improved upon, but the basic concept remains the same.
How Does a French Drain Work?
The French drain consists of a trench filled with gravel and a perforated pipe. The pipe is laid in the trench and is surrounded by gravel. The gravel provides an open area for the water to be absorbed and transported away from the site. The pipe also helps to keep the gravel in place in the trench and prevents it from washing away in heavy rains.
The pipe can be connected to an underground drainage system, such as a sump pump, to help redirect the water away from the site. The pipe can also be connected to a dry well or a dry creek bed, which allows the water to slowly seep into the ground at a safe distance from the site.
What Are the Benefits of a French Drain?
A French drain can provide many benefits to a property. It can be used to redirect surface water away from buildings, reduce wet spots in yards, and even reduce the high water table in some areas. The French drain is a relatively simple system that is easy to install and maintain. It is also relatively inexpensive compared to other drainage systems.
A French drain can also provide an aesthetic benefit to a property. The gravel used in the trench can be arranged in an attractive pattern, allowing it to blend in with the landscaping of the property. This can help enhance the overall look of the property and can also add to its value.
How to Install a French Drain?
Installing a French drain is relatively simple and can be done by a homeowner with some basic tools and materials. The first step is to determine where the drain will be located and to mark the area with stakes and string. The next step is to dig a trench that is at least 10 inches deep and 6 inches wide. The trench should be sloped slightly, with the lowest point being at the end of the drain where the water will exit.
Once the trench is dug, the pipe should be placed in the trench. The pipe should be surrounded by gravel and should be covered with a fabric to help keep the gravel in place. The pipe should then be connected to an underground drainage system, such as a sump pump, and the trench should be filled with soil. The soil should be packed down firmly to help keep the gravel in place.
How to Draw a French Drain Detail Drawing?

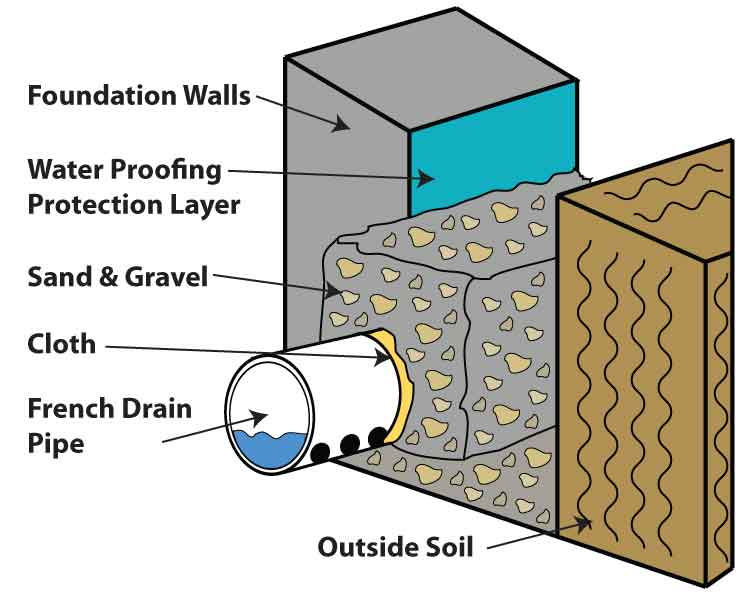

Drawing a French drain detail drawing is a fairly simple process that can help a homeowner visualize the layout of a French drain system. The drawing should include a plan view of the drain with all of the components labeled. The drawing should also include a cross-sectional view of the drain that shows the depth and width of the trench, the placement of the pipe, and the type of gravel used.
When drawing a French drain detail drawing, it is important to take measurements of the site and to draw the components to scale. This will help ensure that the drawing is accurate and will help the homeowner better understand the layout of the system. It is also important to draw the components in the correct order and to label each component clearly.
Conclusion
A French drain is a simple and effective way to remove excess water from an area. It is a trench filled with gravel and a perforated pipe that helps collect and transport surface water to an approved drainage location. The French drain can be used to redirect surface water away from buildings, reduce wet spots in yards, and even reduce the high water table in some areas. Installing a French drain is relatively simple and can be done by a homeowner with some basic tools and materials. Drawing a French drain detail drawing is also a relatively simple process that can help a homeowner visualize the layout of the system.
